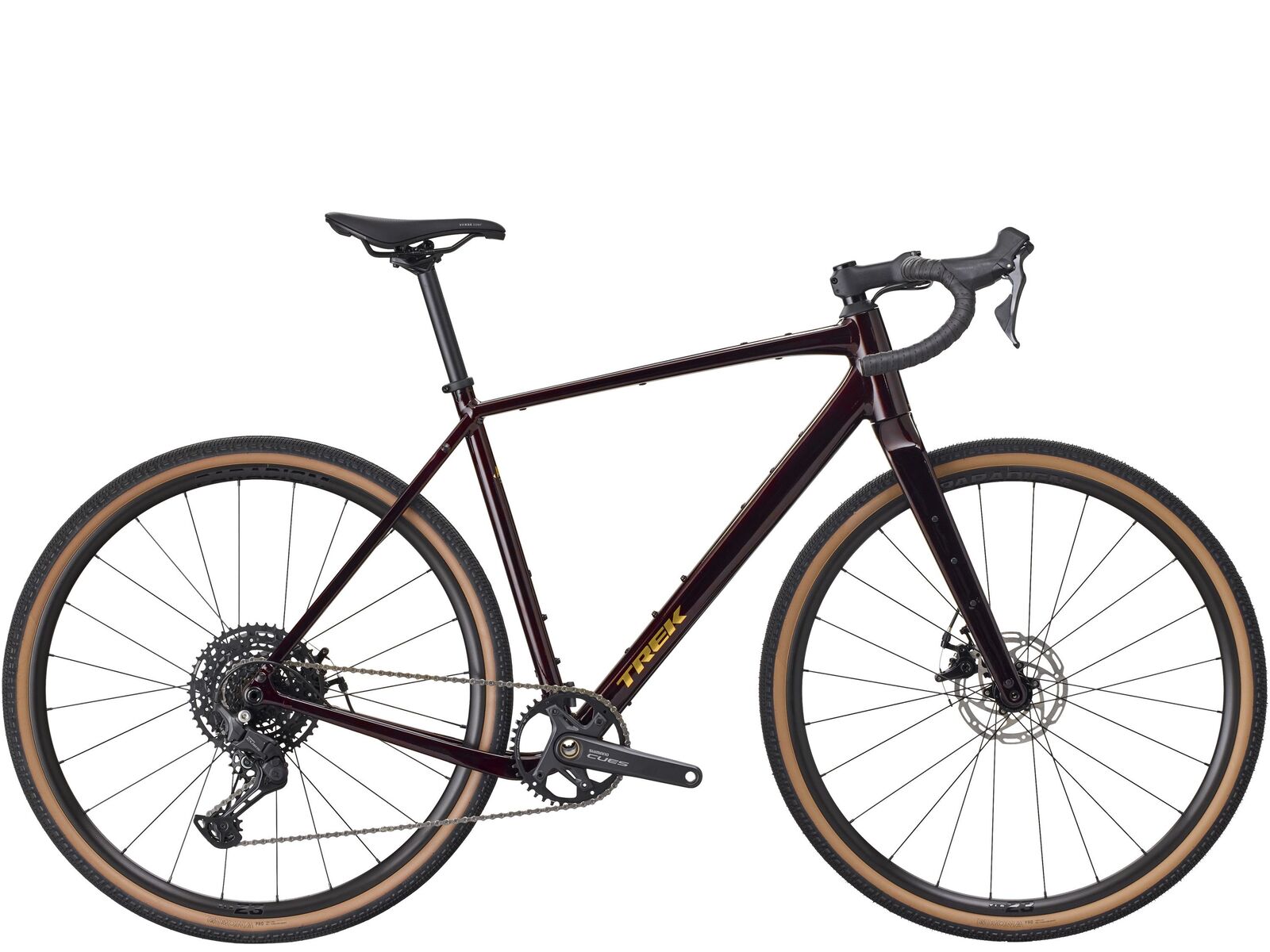

Trek Checkpoint ALR 3 Dark Carmine
| Options | XS Dark Carmine Unisex Unisex In Stock (Warehouse) S Dark Carmine Unisex Unisex In Stock (Warehouse) M Dark Carmine Unisex Unisex In Stock (Warehouse) ML Dark Carmine Unisex Unisex In Stock (Warehouse) L Dark Carmine Unisex Unisex In Stock (Warehouse) XL Dark Carmine Unisex Unisex In Stock (Warehouse) |
|---|---|
| Style | Checkpoint ALR 3 is an adventure-ready aluminum gravel bike built for exploring beyond the pavement. Its modern endurance geometry keeps you comfortable over rough roads and long miles, while a carbon fork helps smooth out chatter and potholes. With clearance for up to 50mm tires, 10-speed Shimano CUES shifting, mechanical disc brakes, and plenty of mounts for bags and gear, it's ready for everything from gravel detours to weekend escapes. Mounts galore - The new Checkpoint ALR is equipped to carry everything you need with mounts on the frame and fork for front and rear racks, mudguards and Adventure Top Tube, Frame and Triangle Bags. Plus, the new frame has been optimised to fit extra hydration in addition to all your bags. |
| Frame | 300 Series Alpha Aluminium, Internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm chamfered thru axle |
| Forks | Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thr |
| Rear Derailleur | Shimano CUES U6000 GS |
| Chainset | Shimano CUES FCU60301, 40T ring, 165 mm length |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Chain | Shimano LG500 |
| Freewheel | Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Handlebars | Bontrager Elite Gravel, alloy, 40 cm width |
| Rims | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
| Front Hub | Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle |
| Rear Hub | Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Tyres | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| Brakes | Tektro C550 mechanical disc brake, dual piston, flat mount 0 offset // Shimano CUES U3030 // Tektro C550 mechanical disc brake, dual piston, flat mount, No adaptor. Tektro C550 mechanical disc brake, dual piston, flat mount 0 offset // Shimano |
| Wheel Size | 28 |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
